Victron Energy·SKU TSS-VICTRON-SMARTSOLAR-MPPT-250-100-TR-VE-CAN

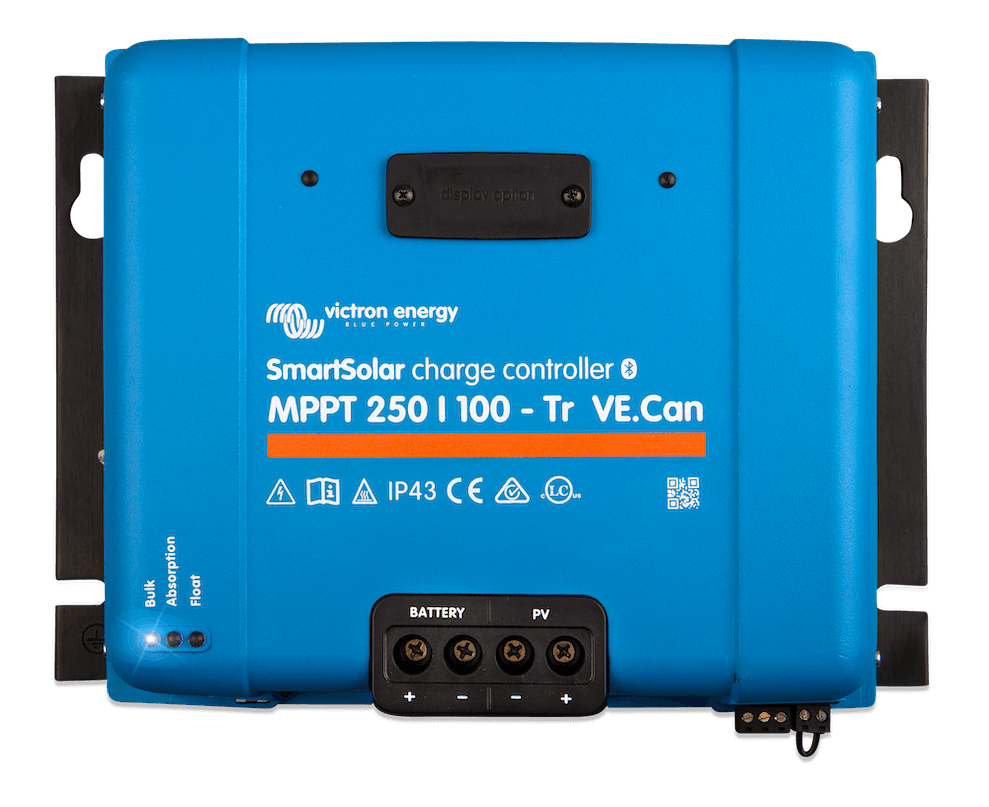

Victron SmartSolar MPPT 250/100-Tr VE.Can Charge Controller

₦695,000

Not in stock right now. Pre-order and we confirm the lead time within one working day.

The Victron SmartSolar Charge Controller MPPT 250/100-Tr VE.Can is an ultra-fast MPPT solar charge controller rated at 100 A charge current, accepting a PV array voltage of up to 250 V (absolute maximum in the coldest conditions). It automatically selects 12/24/48 V battery voltage (36 V manual) and handles up to 5800 W of PV power on a 48 V battery bank. Ultra-fast Maximum Power Point Tracking improves energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers, while the SmartSolar algorithm locks onto the optimum MPP even under partial shading. Maximum efficiency exceeds 99 % with no cooling fan. Bluetooth Smart is built in for set-up, monitoring, updating and synchronising, and VE.Can plus VE.Direct allow a wired data connection to a Color Control GX or other GX device, PC or other devices. Up to 25 units can be synchronised over VE.Can (10 units over Bluetooth). Other features include a fully programmable eight-preset charge algorithm selectable with a rotary switch, a programmable relay, remote on-off, fully discharged battery recovery, extensive electronic protection, and an optional pluggable LCD display. This is the "Tr" version with 35 mm² / AWG2 screw terminals for the PV connection (not MC4 connectors).

Battery voltage:12/24/48 V Auto Select (36 V: manual)
Rated charge current:100 A
Nominal PV power, 12 V:1450 W
Nominal PV power, 24 V:2900 W
Nominal PV power, 36 V:4350 W
Nominal PV power, 48 V:5800 W

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (375 KB).

Specifications

Battery voltage: 12/24/48 V Auto Select (36 V: manual)
Rated charge current: 100 A
Nominal PV power, 12 V: 1450 W
Nominal PV power, 24 V: 2900 W
Nominal PV power, 36 V: 4350 W
Nominal PV power, 48 V: 5800 W
Max. PV short circuit current: 70 A (max 30 A per MC4 conn.)
Maximum PV open circuit voltage: 250 V absolute maximum coldest conditions; 245 V start-up and operating maximum
Maximum efficiency: 99 %
Self-consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge voltage 'absorption': Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float': Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization': Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature compensation: -16 mV / -32 mV / -64 mV / °C
Protection: PV reverse polarity / Output short circuit / Over temperature
Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
Humidity: 95 %, non-condensing
Maximum altitude: 5000 m (full rated output up to 2000 m)
Environmental condition: Indoor, unconditioned
Pollution degree: PD3
Data communication: VE.Can, VE.Direct and Bluetooth
Remote on/off: Yes (2 pole connector)
Programmable relay: DPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel operation: Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
Colour: Blue (RAL 5012)
PV terminals: 35 mm² / AWG2 (Tr models)
Battery terminals: 35mm² / AWG2
Protection category: IP43 (electronic components), IP22 (connection area)
Weight: 4,5 kg
