Huawei·SKU TSS-HUAWEI-SUN2000-100KTL-M2

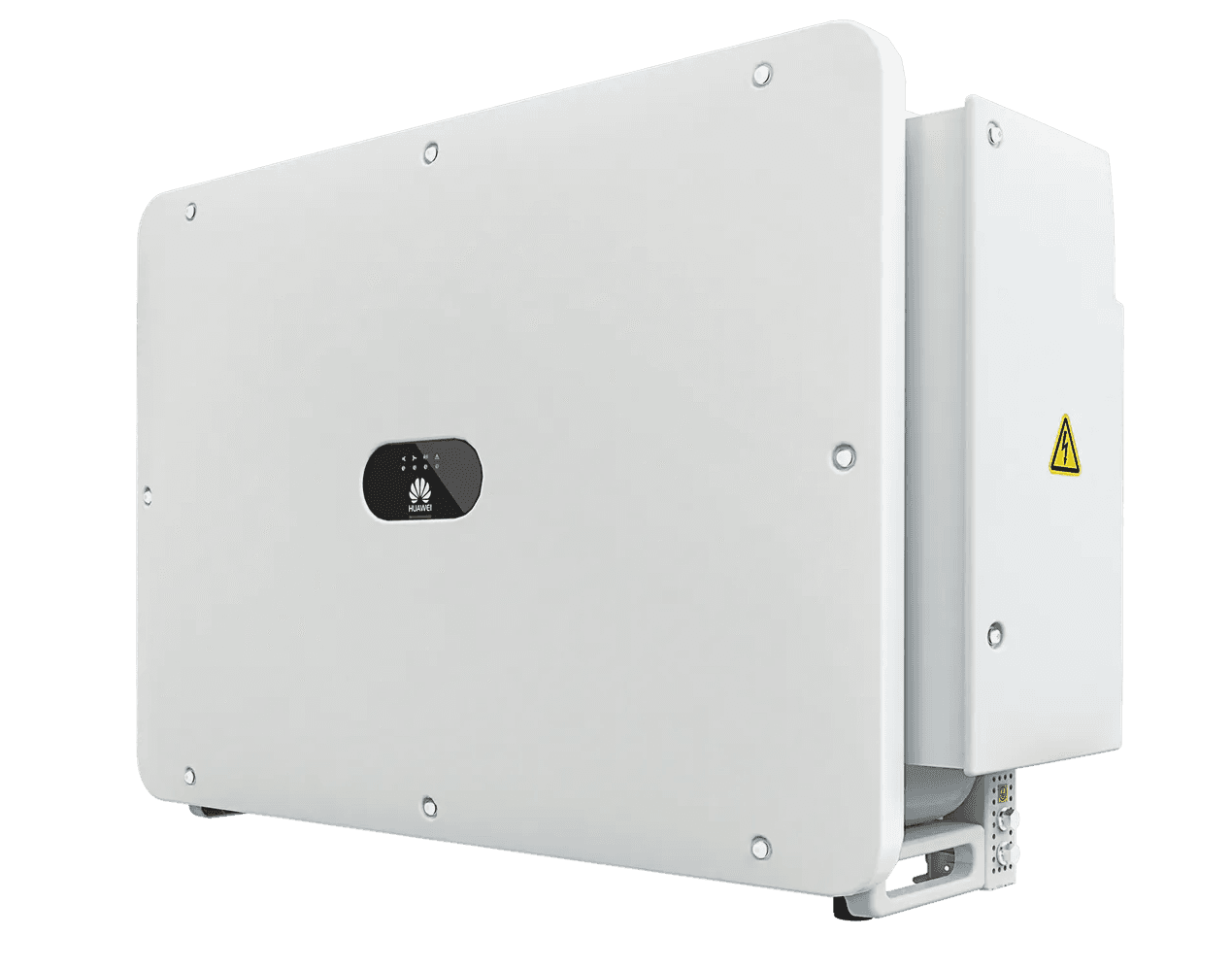

Huawei SUN2000-100KTL-M2 Smart PV Controller

₦5,500,000

In stock at Victoria Island, ready for pickup

The Huawei SUN2000-100KTL-M2 is a 100 kW three-phase grid-tie string inverter (Smart PV Controller) designed for commercial and utility-scale rooftop and ground-mount PV plants. It has 10 MPP trackers with up to two strings each, a maximum efficiency of 98.8% at 480 V, and string-level management with Smart I-V Curve Diagnosis, AFCI arc-fault protection and a smart string-level disconnector. The transformerless design is IP66-rated with Type II surge arresters on both DC and AC sides and smart air cooling for outdoor installation.

Nominal AC Active Power:100,000 W
Max. AC Apparent Power:110,000 VA
Max. AC Active Power (cosφ=1):110,000 W
Max. Efficiency:98.6% @ 400 V, 98.8% @ 480 V
European Efficiency:98.4% @ 400 V, 98.6% @ 480 V
Max. Input Voltage:1,100 V

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (309 KB).

Specifications

Nominal AC Active Power: 100,000 W
Max. AC Apparent Power: 110,000 VA
Max. AC Active Power (cosφ=1): 110,000 W
Max. Efficiency: 98.6% @ 400 V, 98.8% @ 480 V
European Efficiency: 98.4% @ 400 V, 98.6% @ 480 V
Max. Input Voltage: 1,100 V
MPPT Operating Voltage Range: 200 V ~ 1,000 V
Start Voltage: 200 V
Number of MPP Trackers: 10 (max. 2 inputs per MPPT)
Max. Current per MPPT: 30 A
Max. Short Circuit Current per MPPT: 40 A
Nominal Output Voltage: 380 V / 400 V / 480 V, 3W+(N)+PE
Rated AC Grid Frequency: 50 Hz / 60 Hz
Max. Output Current: 160.4 A @ 400 V, 133.7 A @ 480 V
Power Factor Range: 0.8 leading ... 0.8 lagging
Max. Total Harmonic Distortion: < 3%
Dimensions (W x H x D): 1,035 x 700 x 365 mm
Weight (with mounting plate): ≤93 kg
Operating Temperature Range: -25°C ~ 60°C
Protection Degree: IP66
Cooling Method: Smart Air Cooling
Communication: RS485, USB, MBUS, Smart Dongle – 4G / WLAN (optional)
Certificates: EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 61727, IEC 60068, IEC 61683
