Victron Energy·SKU TSS-VICTRON-MULTIPLUS-II-48-15000-200-100-230V

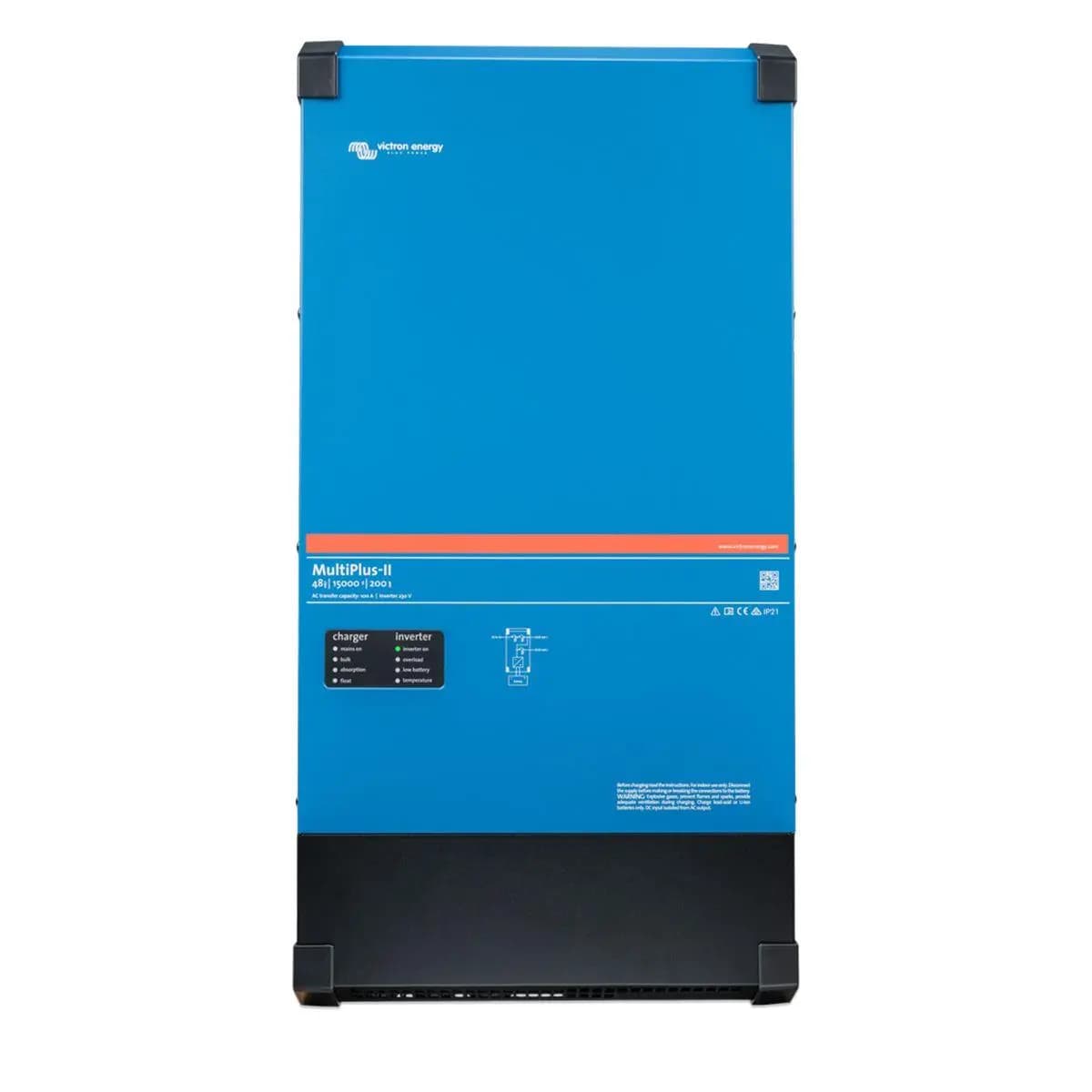

Victron Multiplus-II 48/15000/200-100 230V Inverter/Charger

₦3,890,800

Not in stock right now. Pre-order and we confirm the lead time within one working day.

The MultiPlus-II 48/15000/200-100 is a 48 V multifunctional inverter/charger with a 15000 VA inverter, a 200 A battery charger and a 100 A transfer switch, designed for off-grid, backup and ESS (Energy Storage System) installations. It combines PowerControl and PowerAssist to limit and supplement grid or generator current, provides two AC outputs with switchover in under 20 milliseconds, and includes built-in anti-islanding for grid-parallel use. Configuration and monitoring are done with VEConfigure/VictronConnect via the MK3-USB interface, or remotely through a GX device and the free VRM portal.

Continuous output power at 25 °C:15000 VA / 12000 W
Continuous output power at 40 °C:10000 W
Continuous output power at 65 °C:7000 W
Peak power:27000 W
Max apparent feed-in power:15000 VA
DC input voltage range:48 V – 38-66 V

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (447 KB).

Specifications

Continuous output power at 25 °C: 15000 VA / 12000 W
Continuous output power at 40 °C: 10000 W
Continuous output power at 65 °C: 7000 W
Peak power: 27000 W
Max apparent feed-in power: 15000 VA
DC input voltage range: 48 V – 38-66 V
AC output: 230 VAC ± 2 %, 50 Hz ± 0,1 % (adjustable to 60 Hz)
Maximum efficiency: 95%
Zero load power: 55 W (AES mode 39 W, Search mode 6 W)
Max. battery charge current: 200 A (up to 25 °C ambient)
Charge voltage absorption / float / storage: 57,6 V / 55,2 V / 52,8 V
AC input voltage range: 187-265 VAC, 45 – 65 Hz
Transfer switch / max AC input current: 100 A
Auxiliary output: Yes (50 A)
External AC current sensor (optional): 100 A
Operating temperature range: -40 to +65 °C (fan assisted cooling)
Humidity (non-condensing): max 95 %
Maximum altitude: 2000 m
Enclosure: Steel, blue RAL 5012, IP22
Connections: Four M8 bolts battery (2 plus, 2 minus); 230 VAC bolts M6
Dimensions (hxwxd): 810 x 405 x 217 mm
Weight: 80 kg
Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2; EN 55014-1/-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1/-6-2/-6-3
