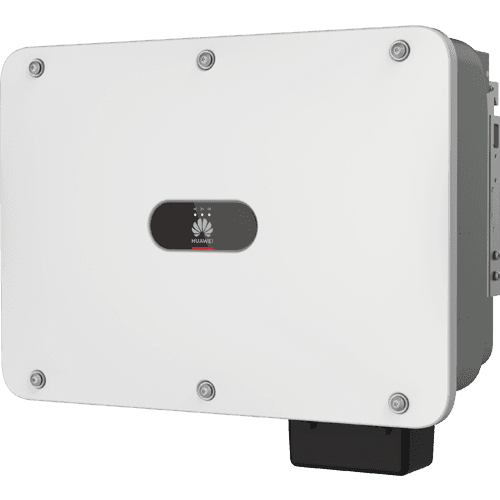

Huawei SUN2000-50KTL-M3 Smart PV Controller
₦3,727,400
In stock at Victoria Island, ready for pickup
The Huawei SUN2000-50KTL-M3 is a 50 kW three-phase transformerless grid-tie PV inverter (Smart PV Controller) for commercial and industrial rooftop and ground-mount systems. It has 4 MPP trackers with 8 DC inputs, a maximum efficiency of 98.5%, and supports string-level monitoring, AI-powered arc fault protection and PID recovery. Monitoring and control are available over RS485, WLAN with app, or optional Smart Dongle for Ethernet and 4G/3G/2G, and the IP66 enclosure with smart air cooling suits outdoor installation.
- Rated AC Active Power:50,000 W
- Max. AC Apparent Power:55,000 VA
- Max. AC Active Power (cosφ=1):55,000 W
- Max. Efficiency:98.5%
- European Efficiency:98.0%
- Max. Input Voltage:1,100 V
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (204 KB).
Specifications
- Rated AC Active Power
- 50,000 W
- Max. AC Apparent Power
- 55,000 VA
- Max. AC Active Power (cosφ=1)
- 55,000 W
- Max. Efficiency
- 98.5%
- European Efficiency
- 98.0%
- Max. Input Voltage
- 1,100 V
- MPPT Operating Voltage Range
- 200 V ~ 1,000 V
- Rated Input Voltage
- 600 V
- Start Voltage
- 200 V
- Number of Inputs / MPP Trackers
- 8 inputs / 4 MPP trackers
- Max. Current per MPPT
- 30 A
- Rated Output Voltage
- 400 Vac / 480 Vac, 3W+(N) + PE
- Rated AC Grid Frequency
- 50 Hz / 60 Hz
- Max. Output Current
- 79.8 A @ 400Vac, 66.5 A @ 480Vac
- Power Factor Range
- 0.8 LG ... 0.8 LD
- Dimensions (W x H x D)
- 640 x 530 x 270 mm
- Weight (with mounting plate)
- 49 kg
- Operating Temperature Range
- -25°C ~ 60°C
- Protection Degree
- IP 66
- Cooling Method
- Smart Air Cooling
- Topology
- Transformerless
- Nighttime Power Consumption
- ≤ 5.5W
- Safety Standards
- EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 60068, IEC 61683
- DC / AC Surge Arrester
- Type II / Type II
