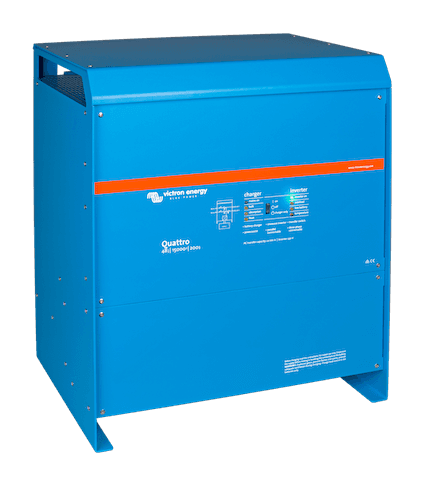

Victron Quattro 48/15000/200-100/100 Inverter/Charger

₦5,588,700

In stock at Victoria Island, ready for pickup

The Victron Quattro 48/15000/200-100/100 is a powerful 48 V inverter/charger delivering 15000 VA (12000 W continuous at 25 °C) of pure 230 VAC output with a 200 A battery charger built in. It has two AC inputs with an integrated transfer switch, so it can be connected to two independent AC sources — for example the public grid and a generator, or two generators — and automatically connects to the active source. The main AC output has no-break functionality, taking over supply to connected loads in under 20 milliseconds when the grid or generator fails, so computers and other electronics keep running. A second AC output is live only when AC is available on one of the inputs, ideal for loads such as a water heater that should not discharge the battery. PowerControl lets you set a current limit on each AC input so the Quattro shares limited generator or grid power with other loads, while PowerAssist boosts a weak generator or mains supply with battery power during peaks. The unit is lithium-ion battery compatible and suits off-grid, grid-connected PV and hybrid systems. Three units can be configured for three phase output, and up to 4 sets of three 15 kVA units can be paralleled for 144 kW / 180 kVA inverter power and 2400 A charging capacity. Configuration is via DIP switches, VE.Configure/VictronConnect and Assistants; monitoring and control is available on site (Digital Multi Control panel, battery monitor, Cerbo GX or other GX device, Bluetooth, USB/RS232) and remotely through the free VRM Online Portal and VRM app.

Nominal battery voltage:48 V battery
Continuous output power at 25 °C:15000 VA
Continuous output power at 25 °C:12000 W
Continuous output power at 40 °C:10000 W
Continuous output power at 65 °C:7000 W
Peak power:25000 W

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (370 KB).

Specifications

Nominal battery voltage: 48 V battery
Continuous output power at 25 °C: 15000 VA
Continuous output power at 25 °C: 12000 W
Continuous output power at 40 °C: 10000 W
Continuous output power at 65 °C: 7000 W
Peak power: 25000 W
Output: Output voltage: 230 VAC ± 2 % / Frequency: 50 Hz ± 0,1 %
Inverter input voltage range: 38 – 60 V
Input current: 350 A DC
Maximum continuous output current: 53/50 A~
Power factor range: ±0.8
Maximum output fault current: 150 A 1 sec
Maximum efficiency: 96 %
Zero load power: 110 W
Zero load power in AES mode: 75 W
Zero load power in Search mode: 20 W
Charge current house battery: 200 A (up to 25 ˚C ambient)
Charge voltage 'absorption': 57,6 VDC
Charge voltage 'float': 55,2 VDC
Storage mode: 52,8 VDC
Battery temperature sensor: Not included with 48V models. Order number: ASS000001000
AC inputs (2x): Input voltage range: 187-250 VAC, Input frequency: 50/60 Hz, Cos Φ >0.8
Maximum feed through current: 2x100 A
ICw: 10 kA 30 ms
PowerControl / PowerAssist: Yes
Integrated transfer switch: Yes
Auxiliary output: 50 A (switches off when no external AC source available)
Programmable relay: 3x
VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration
General purpose com. port: 2x
