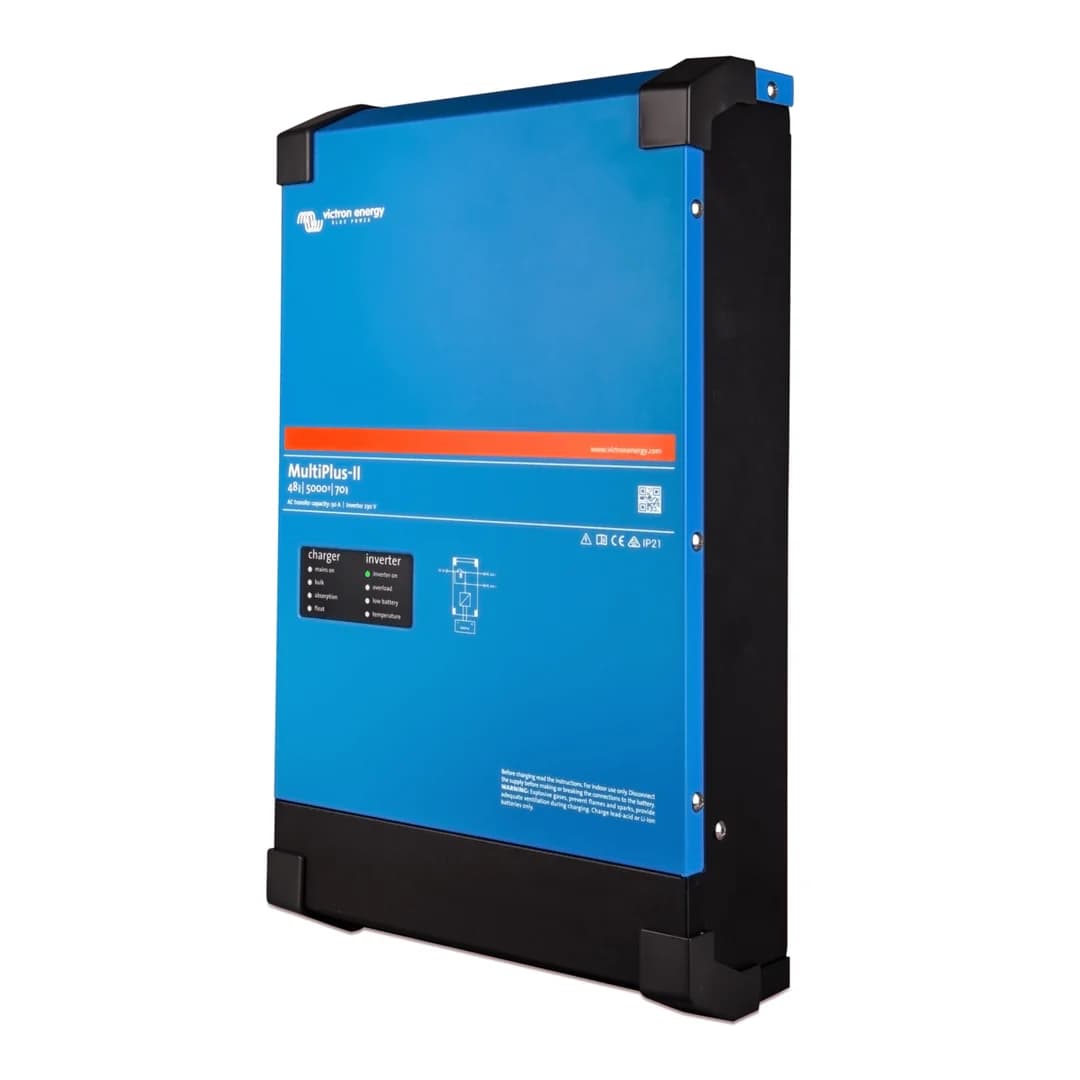

Victron Multiplus-II 48/5000/70-50 230V Inverter/Charger
₦1,116,800
In stock at Victoria Island, ready for pickup
The MultiPlus-II 48/5000/70-50 is a combined 48 V inverter and battery charger with an integrated 50 A transfer switch, rated 5000 VA / 4000 W at 25 °C with a 70 A charger. It suits off-grid, backup and ESS (Energy Storage System) installations, switching to battery power in under 20 milliseconds during a grid outage and supporting an optional external AC current sensor for self-consumption optimisation and anti-islanding. PowerControl and PowerAssist limit grid or generator draw and boost weak supplies from the battery, and up to 6 units can be paralleled or three units configured for three-phase output.
- DC input voltage range:38-66 V
- Continuous output power at 25 °C:5000 VA
- Continuous output power at 25 °C:4000 W
- Continuous output power at 40 °C:3700 W
- Continuous output power at 65 °C:3000 W
- Peak power:9000 W
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (447 KB).
Specifications
- DC input voltage range
- 38-66 V
- Continuous output power at 25 °C
- 5000 VA
- Continuous output power at 25 °C
- 4000 W
- Continuous output power at 40 °C
- 3700 W
- Continuous output power at 65 °C
- 3000 W
- Peak power
- 9000 W
- Max apparent feed-in power
- 5000 VA
- Output voltage / frequency
- 230 VAC ± 2 % / 50 Hz ± 0,1 % (adjustable to 60 Hz)
- Maximum efficiency
- 96%
- Zero load power
- 18 W (AES mode 12 W, Search mode 2 W)
- Transfer switch / max AC input current
- 50 A
- AC input range
- 187-265 VAC, 45 – 65 Hz
- Max. battery charge current
- 70 A (up to 25 °C ambient)
- Charge voltages (absorption / float / storage)
- 57,6 V / 55,2 V / 52,8 V
- Auxiliary AC output
- Yes (50 A)
- External AC current sensor (optional)
- 100 A
- Communication
- VE.Bus port, 2x general purpose com. port, remote on-off, programmable relay
- Operating temperature range
- -40 to +65 °C (fan assisted cooling)
- Humidity (non-condensing)
- max 95 %
- Maximum altitude
- 2000 m
- Enclosure
- Steel, blue RAL 5012, IP22
- Battery connection
- M8 bolts
- 230 VAC connection
- Screw terminals 13 mm² (6 AWG)
- Weight
- 30 kg
- Dimensions (hxwxd)
- 565 x 320 x 149 mm
- Safety standards
- EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- EMC standards
- EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
