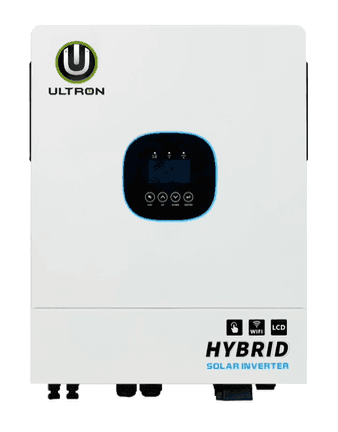

Ultron 11kW 48V Hybrid Solar Inverter
₦1,122,700
In stock at Victoria Island, ready for pickup
The Ultron 11kW 48V Hybrid Solar Inverter is a pure sine wave inverter, battery charger, AC auto-transfer switch and dual MPPT solar charge controller in one unit for 48V battery systems. It handles up to 11000W of PV input at a maximum 500VDC array voltage and supports lead-acid (sealed, AGM, gel, flooded), LiFePO4 and other lithium batteries, with 3 charging modes and 3 output priority modes. Up to 6 units can be connected in parallel, including three-phase configurations, and protection covers battery overcharge, over-discharge, overload and short circuit with auto restart when AC returns.
- Rated Power:11kW
- Nominal Input Voltage (AC):230Vac
- Max AC Input Voltage:300Vac
- Max AC Input Current:80A
- Nominal Input Frequency:50Hz / 60Hz (auto detection)
- Output Voltage Waveform:Pure Sine Wave
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (5303 KB).
Specifications
- Rated Power
- 11kW
- Nominal Input Voltage (AC)
- 230Vac
- Max AC Input Voltage
- 300Vac
- Max AC Input Current
- 80A
- Nominal Input Frequency
- 50Hz / 60Hz (auto detection)
- Output Voltage Waveform
- Pure Sine Wave
- Output Voltage Regulation
- 230Vac ± 5%
- Output Frequency
- 50Hz or 60Hz
- Efficiency (Line Mode)
- >95% (rated R load, battery fully charged)
- Peak Efficiency
- 93%
- Transfer Time
- 10ms typical (UPS), 20ms typical (Appliances)
- Surge Capacity
- 2 x rated power for 5 seconds
- Nominal DC Input Voltage
- 48Vdc
- PV Rated Power
- 5500W x 2
- Max PV Array Open Circuit Voltage
- 500Vdc
- PV Array MPPT Voltage Range
- 90Vdc ~ 450Vdc
- Max PV Input Current
- 25A x 2
- Maximum Solar Charging Current
- 80A x 2 (160A total)
- Start-up Voltage (PV)
- 120Vdc ± 5Vdc
- Floating Charging Voltage
- 54Vdc
- Overcharge Protection
- 60Vdc
- Max Parallel Units
- 6
- Parallel Communication
- CAN
- Safety Certification
- CE
- Operating Temperature Range
- 0℃ to 40℃
- Storage Temperature
- -15℃ ~ 60℃
- Humidity
- 5% to 95% relative humidity (non-condensing)
- Product Size (D*W*H)
- 430mm x 618mm x 132mm
- Net Weight
- 16.9Kg
- Gross Weight
- 20.7Kg
