Schneider·SKU TSS-SCHNEIDER-HOMAYA-PRO-S4000-4KW-48V

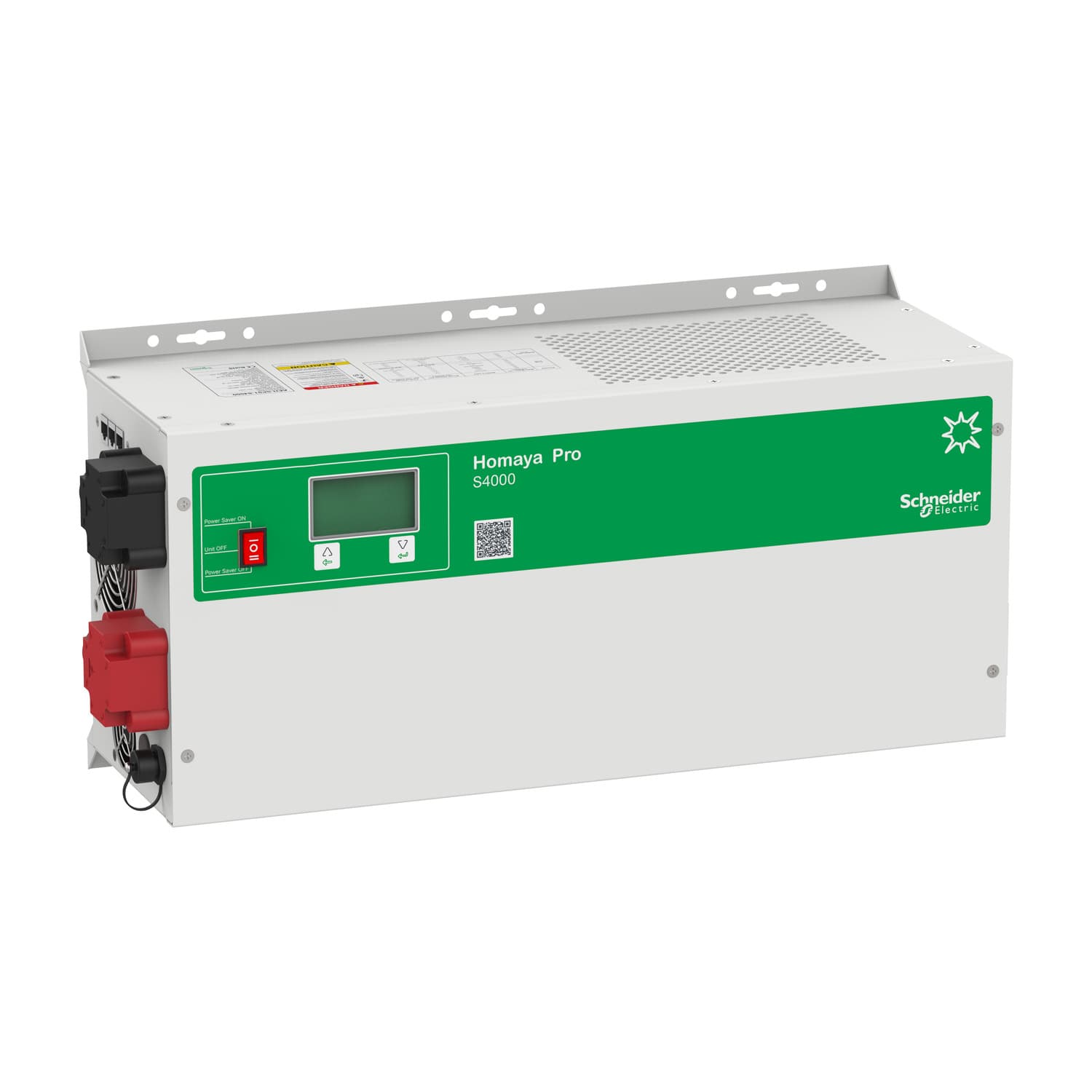

Schneider Homaya Pro 4kW 48V Solar Hybrid Inverter (AEH-SP01-S4000)

₦751,800

Not in stock right now. Pre-order and we confirm the lead time within one working day.

The Homaya Pro S4000 is a 4 kW, 48 V transformer-based solar-hybrid off-grid inverter with a built-in 60 A MPPT solar charge controller and an AC (grid) battery charger. It is built for homes, small offices, fuel stations, healthcare centres, schools and telecom sites in areas with unreliable or no grid supply, and works with flooded, gel, AGM and LiFePO4 batteries using customisable charging profiles. Up to six units can be paralleled for a combined output of 24 kW, and the system can be monitored locally through the LCD screen or an optional Wi-Fi dongle without internet access.

Continuous output power (up to 40 °C):4000 W / 4000 VA
Overload 15 min / 60 s at 25 °C:5000 W / 6000 W
Surge rating for 10 s:35 A
Continuous output current at 40 °C:17.4 A
Output voltage / frequency:L-N: 230 V +/- 10%, 50/60 Hz (±0.3 Hz), selectable
Output waveform:Sinewave

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (693 KB).

Specifications

Continuous output power (up to 40 °C): 4000 W / 4000 VA
Overload 15 min / 60 s at 25 °C: 5000 W / 6000 W
Surge rating for 10 s: 35 A
Continuous output current at 40 °C: 17.4 A
Output voltage / frequency: L-N: 230 V +/- 10%, 50/60 Hz (±0.3 Hz), selectable
Output waveform: Sinewave
Battery / DC input voltage range: 40 V to 64 V (48 V nominal)
Maximum input DC current: 125 A
Motor load: Up to 3HP
Scalability: Up to 6 inverters in parallel, 1-Ph, 230 V (up to 24 kW)
MPPT charge current / power: 60 A / 3000 W
PV input voltage range (Vmp/Voc): 80 V to 250 V DC, max 300 V DC
PV input maximum power: 3200 W
MPPT tracking efficiency: 99%
AC charger maximum charge current: 35 Amps
AC input voltage range / max current: L-N: 165 V - 265 V / 40 A
Transfer relay rating / transfer time: 40 A / < 10 mS
Inverter peak efficiency / MPPT peak efficiency: 91% / 95%
Compatible battery types: Flooded, Gel, AGM, LiFePo4
Idle power consumption: <25 W
Product dimensions (H x W x D): 563.5 x 264 x 183.3 mm
Product weight / shipping weight: 28 kg / 29.6 kg
IP degree of protection: IP 20, recommended for indoor usage
Operating temperature / humidity: -15 °C to 40 °C / 5% to 95% RH
Certification: CE, RoHS, SONCAP; Safety IEC 62109-1, IEC 62109-2; EMC IEC 62040-2
