Schneider·SKU TSS-SCHNEIDER-HOMAYA-PRO-S3000-3KW-24V

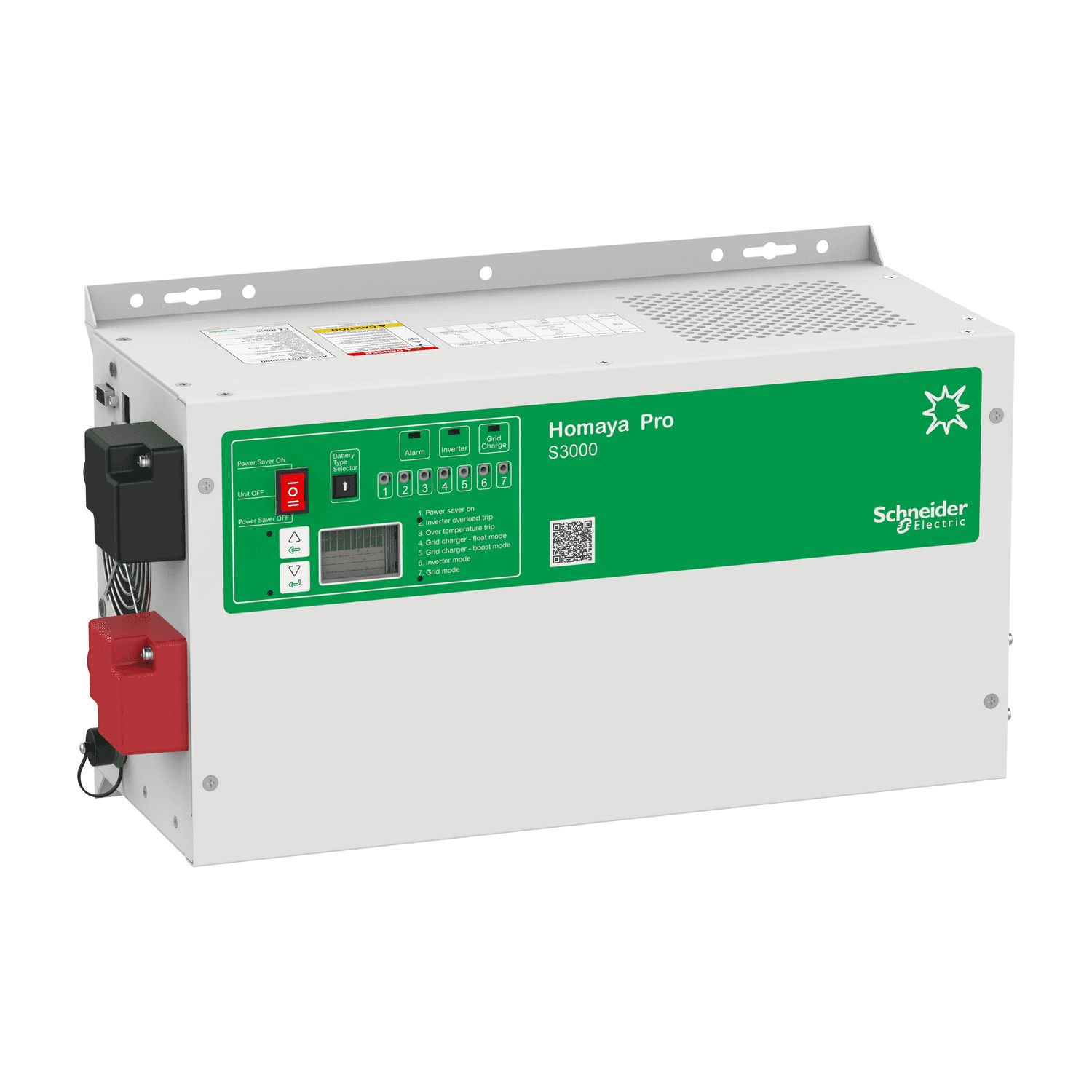

Schneider Homaya Pro Solar 3kW 24V Hybrid Inverter (AEH-SP01-S3000)

₦544,100

In stock at Victoria Island, ready for pickup

The Homaya Pro S3000 is a 3 kW / 3 kVA transformer-based solar off-grid inverter with a built-in MPPT solar charge controller for 24 V lead-acid battery banks. It is designed for homes, fuel stations, small offices, healthcare centres, schools and telecom towers in areas with unreliable or no grid supply, and can charge batteries from either PV or the grid. It supports nine lead-acid charging profiles, battery-priority and grid-priority operating modes, and can be expanded with the external AEH-SP01-M1000 MPPT charger and an optional Wi-Fi dongle for local monitoring.

Continuous output power (up to 40 °C):3000 W / 3000 VA
Overload 15 min / 60 s at 25 °C:3750 W / 4500 W
Output voltage / waveform:L-N: 230 V +/- 10%, Sinewave
Output frequency:50 Hz ± 0.3 Hz (when connected off-grid)
Continuous output current at 40 °C:13.0 A
Battery voltage (nominal):24 Vdc (input DC range 20 V to 32.0 V)

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (2113 KB).

Specifications

Continuous output power (up to 40 °C): 3000 W / 3000 VA
Overload 15 min / 60 s at 25 °C: 3750 W / 4500 W
Output voltage / waveform: L-N: 230 V +/- 10%, Sinewave
Output frequency: 50 Hz ± 0.3 Hz (when connected off-grid)
Continuous output current at 40 °C: 13.0 A
Battery voltage (nominal): 24 Vdc (input DC range 20 V to 32.0 V)
Maximum input DC current: 188 A
Idle consumption: < 25 W
MPPT charger max output current / power: 45 A / 1100 W
PV input voltage range (Vmp/Voc): 30 V to 72 V DC, max 80 V DC
PV input maximum power: 1200 Wp
Compatible battery types: Flooded, Gel, AGM (three-stage charge control)
AC charger max output charge current: 50 Amps
AC input voltage range / max current: L-N: 165 V – 265 V / 30 A
Transfer relay rating / transfer time: 30 A / < 10 mS
Inverter peak efficiency / MPPT peak efficiency: 90% / 97% (tracking efficiency 98%)
Product dimensions (H x W x D): 476.5 x 264 x 183 mm
Product weight / shipping weight: 25 kg / 26.4 kg
Protection degree: IP 20, recommended for indoor usage
Operating temperature / humidity: -15 °C to 40 °C / 5% to 95% RH
Certification: CE, RoHS, SONCAP; IEC 62109-1, IEC 62109-2, IEC 62040-2
