Schneider·SKU TSS-SCHNEIDER-HOMAYA-PRO-M3000-60A-130V-MPPT

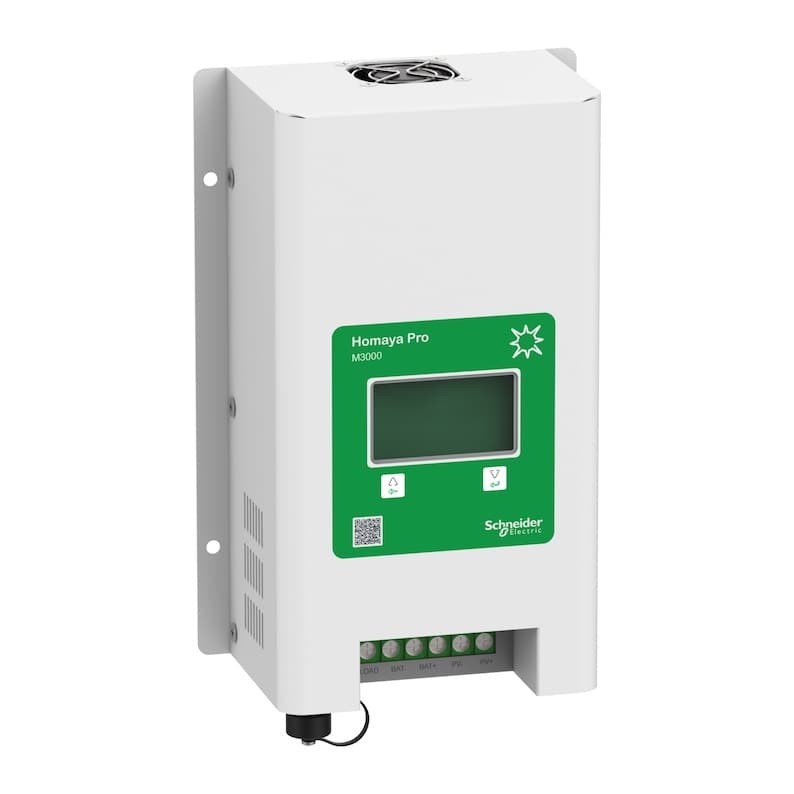

Schneider Homaya Pro 60A 130V MPPT (AEH-SP01-M3000)

₦197,800

In stock at Victoria Island, ready for pickup

The Homaya Pro M3000 is an external 3 kW MPPT solar charge controller for 48 V battery systems, designed to expand the PV capacity of Homaya Pro off-grid inverters (AEH-SP01-S4000 and AEH-SP01-S6000). It accepts up to 3200 Wp of PV, delivers up to 60 A of charge current, and supports flooded, GEL, AGM and LiFePO4 batteries with multi-stage charging. A graphical LCD with faceplate buttons and an RS 485 / BMS port make configuration and battery communication straightforward, and multiple units can be added for unlimited arrays.

Part number:AEH-SP01-M3000
Nominal battery voltage:48 V
Battery voltage operating range:40 V – 62.8 V
Min. PV operating voltage (Vmp):60 V to 120 V
Max. PV array open circuit voltage (Voc):130 V
Max PV operating voltage:200 V

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (956 KB).

Specifications

Part number: AEH-SP01-M3000
Nominal battery voltage: 48 V
Battery voltage operating range: 40 V – 62.8 V
Min. PV operating voltage (Vmp): 60 V to 120 V
Max. PV array open circuit voltage (Voc): 130 V
Max PV operating voltage: 200 V
Max. array short-circuit current: 60 A @ STC
Max PV array rating: 3200 W
Max. charge current: 60 A
Max. output power: 3100 W
Charger regulation method: Three-stage (bulk, absorption, float), Two-Stage (LFP)
Supported battery types: Flooded, GEL, AGM and LiFePo4
Maximum tracking efficiency: 99%
Power consumption (stand by): ≤ 3 W
IP degree of protection: IP 20
Product weight: 2.7 kg
Shipping weight: 3.1 kg
Shipping dimensions (H x W x D): 325 x 235 x 165 mm
Ambient air temperature for operation: -15 °C to 40 °C
Storage temperature range: -25 °C to 60 °C
Operation humidity: 5% to 95% RH
Altitude: 2000 m
Display type: Graphical LCD
Communication ports: RS 485 Port / BMS
Cooling: Forced air, variable speed fan
Safety standards: IEC 62109-1, IEC 62109-2
EMI / EMC: IEC 61000-6-2, -6.4
Certifications: CE, RoHS, SONCAP
