Schneider·SKU TSS-SCHNEIDER-CONEXT-XW-8548E

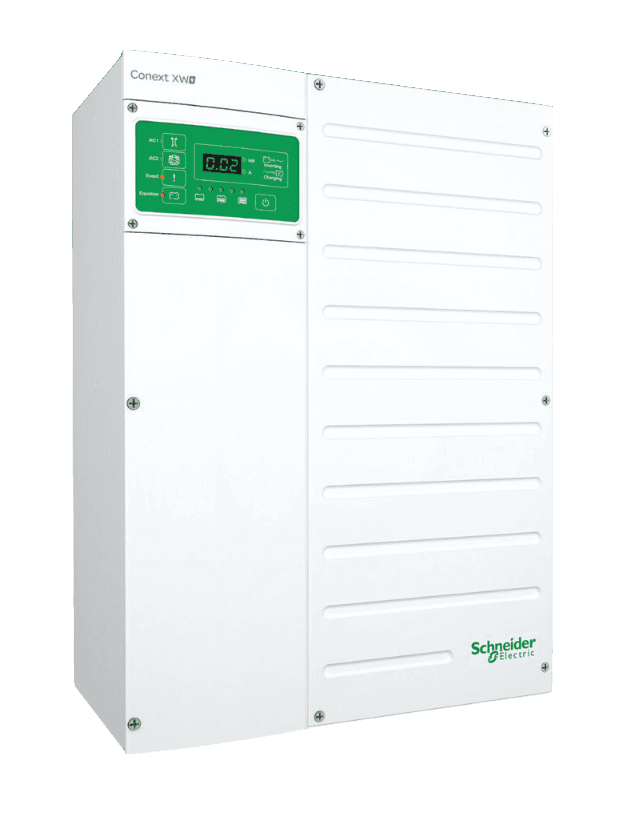

Schneider Conext XW+ 8548E Inverter/Charger

₦4,950,000

In stock at Victoria Island, ready for pickup

The Schneider Electric Conext XW+ 8548 E is a single-phase hybrid inverter/charger for 48 V battery systems, delivering 6800 W of continuous AC output at 25°C (6000 W at 40°C) at 230 Vac, with 8500 W for 30 minutes and 12000 W for 60 seconds of overload capability for starting heavy loads. It combines a powerful 140 A battery charger, dual AC inputs for both grid and generator, a 60 A automatic transfer relay with typical 8 ms transfer time, and grid-tie functionality with up to 6.0 kVA grid sell on AC1. Intelligent features include grid sell, peak load shaving, generator support and prioritized consumption of battery or external DC energy, making it suitable for off-grid solar, residential grid-tie solar with backup power, self-consumption, backup power and community electrification. It supports flooded, gel, AGM, lithium ion and custom battery types, operates in ambient temperatures up to 70°C (with derating above 25°C), and can be clustered in single- or three-phase systems up to 76.5 kW. Field serviceable and easy to commission, it can be monitored, troubleshot or firmware-upgraded via the Conext ComBox.

Device short name:XW+ 8548 E
Part number:865-8548-61
Output power (continuous) at 25°C:6800 W
Overload 30 min/60 sec at 25°C:8500 W/12000 W
Output power (continuous) at 40°C:6000 W
Maximum output current 60 seconds (rms):53 A

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (1944 KB).

Specifications

Device short name: XW+ 8548 E
Part number: 865-8548-61
Output power (continuous) at 25°C: 6800 W
Overload 30 min/60 sec at 25°C: 8500 W/12000 W
Output power (continuous) at 40°C: 6000 W
Maximum output current 60 seconds (rms): 53 A
Output voltage: 230 Vac
Output frequency (selectable): 50/60 Hz
Total harmonic distortion at rated power: < 5%
Idle consumption search mode: < 7 W
Input DC voltage range: 40 to 64 V (48 V nominal)
Maximum input DC current: 180 A
Maximum output charge current: 140 A
Output charge voltage range: 40 – 64 V (48 V nominal)
Charge control: Three stage, two stage, boost, custom
Charge temperature compensation: Battery temperature sensor included
Power factor corrected charging: 0.98
Compatible battery types: Flooded (default), Gel, AGM, Lithium ion, custom*
Battery bank range (scaled to PV array size): 440 to 10000 Ah
AC 1 (grid) input current (selectable limit): 3 – 60 A (56 A default)
AC 2 (generator) input current (selectable limit): 3 – 60 A (56 A default)
Automatic transfer relay rating/typical transfer time: 60 A/8 ms
AC input voltage nominal: 230 V +/- 3%
AC input frequency range (bypass/charge mode): 45 – 55 Hz (default) 40 – 68 Hz (allowable)
Grid sell on AC1 (max): 6.0 kVA
Grid sell current range on AC1 (selectable range): 0 to 27 A
Grid sell voltage range on AC1: 205 to 262 Vrms (auto adjust entering sell mode)
Grid sell frequency range on AC1: 48 to 51 Hz (auto adjust entering sell mode)
Grid sell power factor range (lead/lag): 0.5
Peak efficiency: 95.8%
