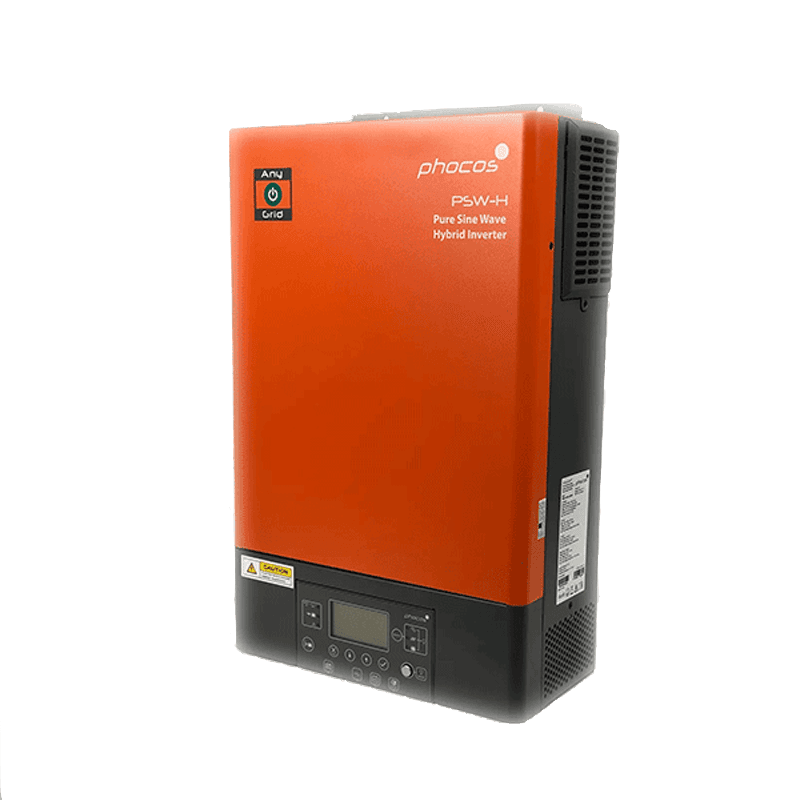

Phocos PSW-H-5kW-230/48V Any-Grid Hybrid Inverter/Charger

₦1,021,300

In stock at Victoria Island, ready for pickup

The Phocos Any-Grid PSW-H-5KW-230/48V is a 5000 VA / 5000 W pure sine wave hybrid inverter charger for 48 Vdc battery systems, with an integrated high-voltage MPPT solar charge controller and an integrated AC battery charger. Batteries can be charged from solar and/or an AC source (public grid or generator) with easily programmable priorities, and the unit can also run without an AC source or even without solar as a pure uninterruptible power supply (UPS). When the grid or generator fails it switches to off-grid mode within 10 ms (typical, in UPS mode) so loads stay powered. It can also operate battery-free, supplying loads from grid and solar simultaneously to cut grid consumption without investing in a battery bank. The unit accepts up to 450 Vdc PV input, allowing long series strings and avoiding combiner boxes, and works with lead acid (gel, AGM, flooded) and lithium batteries. Up to 9 units can be connected in parallel or 3-phase. Features include a detachable display/communication unit with 6 LEDs and LCD screen, BLE, USB-OTG, CAN Bus, RS-485, RS-232, a generator start relay, a 60-day datalogger, PhocosLink App / Any-Bridge AB-PLC and PhocosLink Cloud compatibility, galvanic battery isolation allowing positive or negative grounding, a washable dust filter and a code-protected grid feed-in option. Backed by a 3-year warranty.

Type:PSW-H-5KW-230/48V
Output Waveform:Pure Sine Wave
System Voltage:48 Vdc
Rated AC Output Power:5000 VA / 5000 W
Surge Power:2x rated power for 5 seconds
AC Output Voltage:220 ~ 240 Vac ± 5% (adjustable)

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (203 KB).

Specifications

Type: PSW-H-5KW-230/48V
Output Waveform: Pure Sine Wave
System Voltage: 48 Vdc
Rated AC Output Power: 5000 VA / 5000 W
Surge Power: 2x rated power for 5 seconds
AC Output Voltage: 220 ~ 240 Vac ± 5% (adjustable)
AC Frequency: 50 / 60 Hz auto recognition
Max. AC Input Current: 40 Aac
Max. Charge Current (PV): 80 Adc
Max. Charge Current (AC): 80 Adc
Max. Total Charge Current: 80 Adc
Max. PV Panel Voltage: 450 Vdc
PV Panel MPP Voltage: 120 ~ 430 Vdc
Max. Usable PV Current: 22 Adc
Max. Usable PV Power: 4800 W
Max. PV Array Power: 6000 Wp
Float Charge: 55.2 Vdc (adjustable)
Boost Charge: 57.6 Vdc (adjustable)
Equalization Charge: 59.2 Vdc (adjustable)
Deep-Discharge Protection: 44 Vdc (adjustable)
Reconnect Level: 54.7 Vdc (adjustable)
Overvoltage Protection: 66 Vdc
Undervoltage Protection: 37.5 Vdc
Battery Discharge Current Requirement: 140 Adc continuous, 280 Adc surge (5s)
Battery Type: Lead acid (gel, AGM, flooded), Lithium
Inverter Efficiency (from Battery): > 93 % peak
Inverter Efficiency (from PV): > 96 % peak
Idle Self-Consumption: < 40 W on
Extensibility: Up to 9 units in parallel or 3-phase
Transfer time between grid mode and off-grid mode and vice versa: 10ms typical when in UPS mode, 20ms typical when in APL mode, up to 50ms when using multiple synchronized Any-Grids
