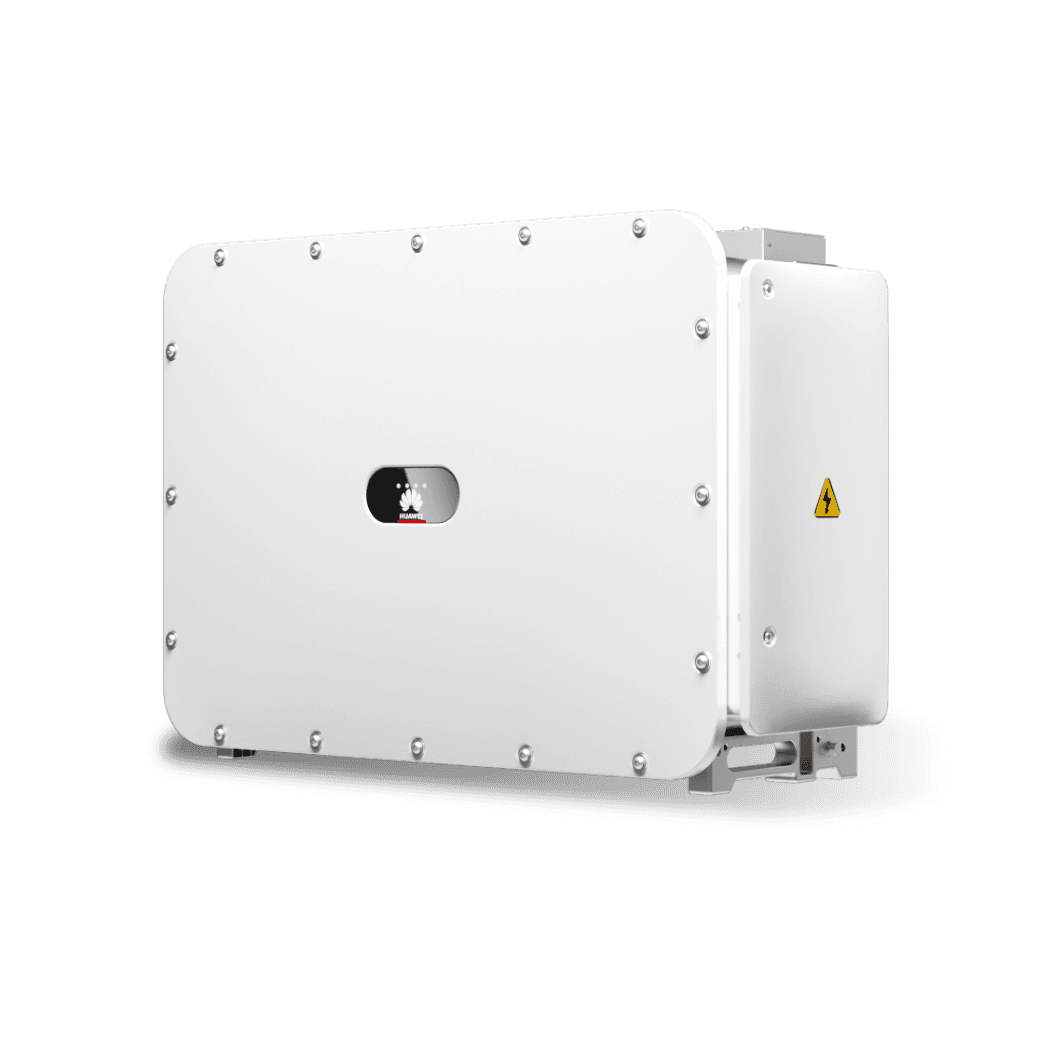

Huawei SUN2000-150K-MG0 Smart PV Controller (150 kW Three-Phase String Inverter)
₦7,884,800
In stock at Victoria Island, ready for pickup
The Huawei SUN2000-150KTL-MG0 inverter is designed for solar systems that require a high energy yield and is particularly suitable for systems with energy storage. It converts the direct current from the solar cells into alternating current, which can either be fed into the grid or consumed on site. With seven independent Maximum Power Point Trackers (MPPTs) and 21 DC connections, this inverter offers improved performance and simpler cabling, which reduces operating and maintenance costs. Each MPPT is equipped with a Smart String Level Disconnector and Arc Fault Circuit Interrupter (AFCI), which increases safety and reduces the risk of fire on the DC side. Thanks to functions such as PV earth fault protection, Smart Connector temperature detector and PID regeneration function, the inverter is also ideal for commercial and industrial applications as well as energy storage systems. With an output of 165 kVA and an MPPT range of 200-1000 V, it offers high yields and reliability, making it the optimal choice for commercial solar systems with energy storage. The Huawei SUN2000-150K-MG0 is a 150 kW three-phase grid-tied string inverter (Smart PV Controller) for commercial and utility-scale solar plants. It has 7 MPP trackers with up to 3 strings each, a 1,100 V maximum DC input voltage and a maximum efficiency of 98.8% at 480 V. Built-in protection features include arc fault protection, PV ground-fault protection, smart string level disconnector, PID recovery, Type II DC and AC surge arresters, and an IP66 enclosure with smart air cooling.
- Nominal AC Active Power:150,000 W
- Max. AC Apparent Power:165,000 VA
- Max. AC Active Power (cosφ=1):165,000 W
- Max. Efficiency:98.6% @400V, 98.8% @480V
- European Efficiency:98.4%
- Max. Input Voltage:1,100 V
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (258 KB).
Specifications
- Nominal AC Active Power
- 150,000 W
- Max. AC Apparent Power
- 165,000 VA
- Max. AC Active Power (cosφ=1)
- 165,000 W
- Max. Efficiency
- 98.6% @400V, 98.8% @480V
- European Efficiency
- 98.4%
- Max. Input Voltage
- 1,100 V
- MPPT Operating Voltage Range
- 200 V ~ 1,000 V
- Start Voltage
- 200 V
- Number of MPP Trackers
- 7
- Max. Input Number per MPP Tracker
- 3
- Max. Current per MPPT
- 48A
- Max. Short Circuit Current per MPPT
- 66A
- Nominal Output Voltage
- 380 V/400 V/480Vac
- Rated AC Grid Frequency
- 50 Hz / 60 Hz
- Max. Output Current
- 253.2 A @380 V, 240.5 A @400 V, 200.5A @480Vac
- Adjustable Power Factor Range
- 0.8 leading... 0.8 lagging
- Dimensions (W x H x D)
- 1,000 x 710 x 395 mm
- Weight (with mounting plate)
- 102 kg
- Operating Temperature Range
- -25°C ~ 60°C
- Protection Degree
- IP66
- Cooling Method
- Smart Air Cooling
- Max. Operating Altitude
- 4,000 m (13,123 ft.)
- Topology
- Transformerless
- Certificates
- EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 61727, IEC 60068, IEC 61683
- Grid Connection Standards
- VDE-AR-N4105, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11
- Communication
- RS485, USB, MBUS (isolation transformer required), Smart Dongle – 4G / WLAN (optional)
