Huawei·SKU TSS-HUAWEI-POWER-M-5-5-ALL-IN-ONE

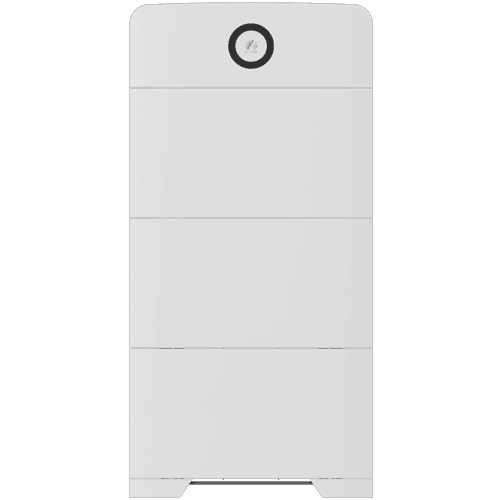

Huawei Power-M-5kW / 5kWh All-In-One System

₦4,141,100

In stock at Victoria Island, ready for pickup

The Huawei iSitePower-M-5/5 is a modular all-in-one power system that combines a 5 kW power module (hybrid inverter with integrated MPPT solar charger) with stackable 5 kWh lithium iron phosphate (LFP) battery modules. It provides 24-hour single-phase backup and off-grid power for homes, shops and small offices, with 100% depth of discharge, cell-level monitoring and a built-in extinguish bag for safety. The system can be expanded to 30 kWh on a single power module, or up to 3 power modules in parallel (15 kW / 45 kWh), and is controlled through one app.

Battery chemistry:Lithium Iron Phosphate (LFP)
Rated battery capacity:5 kWh per module
Depth of discharge:100%
Battery max output/input power:2.5 kW per module
Maximum capacity (single system):Max. 6 pcs batteries, 5 kW output (5kW@30kWh)
Maximum capacity (parallel):Max. 3 power modules in parallel, 3 batteries each (15kW@45kWh)

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (284 KB).

Specifications

Battery chemistry: Lithium Iron Phosphate (LFP)
Rated battery capacity: 5 kWh per module
Depth of discharge: 100%
Battery max output/input power: 2.5 kW per module
Maximum capacity (single system): Max. 6 pcs batteries, 5 kW output (5kW@30kWh)
Maximum capacity (parallel): Max. 3 power modules in parallel, 3 batteries each (15kW@45kWh)
AC output power: 6 kVA / 5 kW
Output voltage system: Single-phase 200/208/220/230/240 V AC (default 220 V AC)
Output frequency: 50/60 Hz (default 50 Hz)
Maximum output current: 30 A
Power factor: 0.8
Overload capacity: 102%–125% for 30s; 125%–150% for 10s; >150%/short circuit 0.3s
AC input voltage / current: 200/208/220/230/240 V AC, max. 30 A
Maximum bypass input power: 6 kW
MPPT voltage range: 90–420 V DC
Maximum PV input capacity: 5.5 kWp
MPPT channels / PV strings: 1 channel / 2 strings
Max input current per string: 12.5 A (max. short-circuit current 18 A)
Dimensions (W*H*D): Power module: 700 mm x 246 mm x 152 mm; Battery module: 700 mm x 390 mm x 158 mm
Weight: Approx. 17 kg power module; approx. 50 kg per energy storage module
Degree of protection: IP66
Installation mode: Wall-mounted / ground-mounted (base mandatory)
Operating temperature: 0°C to 45°C (without +1120 W/m² solar radiation)
Noise level: < 29 dB(A) @1 m, 30°C (typical)
Relative humidity: 5%–95% RH
Altitude: 0–4000 m (derating above 2000 m: -1°C per 200 m)
Lightning protection (PV): Complies with EN/IEC 61643-11 Type II
