Huawei·SKU TSS-HUAWEI-POWER-M-5-15-ALL-IN-ONE

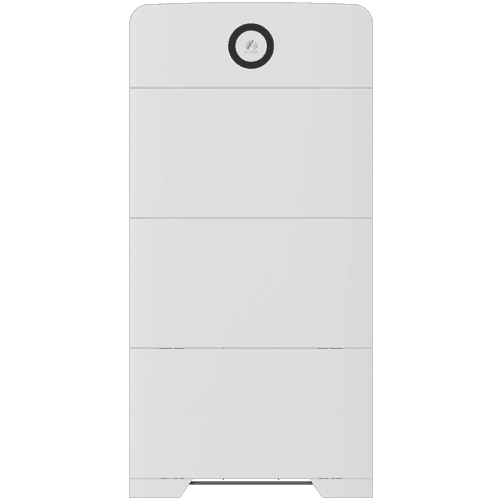

Huawei Power-M-5kW / 15kWh All-In-One System

₦8,635,500

Not in stock right now. Pre-order and we confirm the lead time within one working day.

The Huawei iSitePower-M-5/15 is an all-in-one smart string energy storage system configured with one power module (iSitePower-M-MAP05A1) and three battery modules (iSitePower-M-MAB05B1) for 15 kWh of usable energy and a maximum output of 5 kW (6 kVA/5 kW AC output). It combines a hybrid solar inverter with built-in MPPT (90-420 V DC, up to 5.5 kWp, 2 PV strings), AC bypass input and Lithium Iron Phosphate (LiFePO4) batteries rated for 100% depth of discharge, with cell-level monitoring, 0 V port voltage, a built-in extinguish bag and pack-level energy optimization. Rated IP 66 for wall-mounted or ground-mounted installation, it delivers single-phase 200/208/220/230/240 V AC (220 V AC default) at 50/60 Hz for 24-hour power supply, with sleep-level noise and full control through one app plus CAN communication and Smart PVMS connection over WLAN/FE/4G.

Power module:iSitePower-M-MAP05A1
Output/input power per module:2.5 kW
Max. output power:5 kW
Number of power modules:1
Battery module:iSitePower-M-MAB05B1
Battery module energy:5 kWh

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (228 KB).

Specifications

Power module: iSitePower-M-MAP05A1
Output/input power per module: 2.5 kW
Max. output power: 5 kW
Number of power modules: 1
Battery module: iSitePower-M-MAB05B1
Battery module energy: 5 kWh
Number of battery modules: 3
Battery usable energy: 15 kWh
Cell technology: Lithium-iron phosphate (LiFePO4)
Depth of discharge: 100% Depth of Discharge
AC output voltage system: Single-phase 200/208/220/230/240 V AC. The default value is 220 V AC
Output frequency: 50/60 Hz. The default value is 50 Hz.
Output power: 6 kVA/5 kW
Maximum output current: 30 A
Power factor: 0.8
Overload capacity: 102% ≤ Load ≤ 125%: 30 s; 125% < Load ≤ 150%: 10 s; >150%/short circuit: 0.3 s
AC input voltage: 200/208/220/230/240 V AC
AC input current: Max. 30 A
AC input frequency: 50/60 Hz
Maximum bypass input power: 6 kW
MPPT voltage range: 90-420 V DC
Maximum input capacity of the MPPT: 5.5 kWp
PV string quantity: 2 strings
Number of MPPT channels: 1 channel
Maximum input current for one string: 12.5 A
Maximum short circuit current for one string: 18 A
PV lightning protection: Common mode (between PV+/PV– pair and PE): ±10 KA; 8/20 μs
AC lightning protection: Differential mode (between live and neutral): 3 KA; 8/20 μs; Common mode (between live or neutral and PE, between live/neutral pair and PE): 5 KA; 8/20 μs
Power module dimension (W*H*D): 700 * 246 * 152 mm
Power module weight: 17 kg
