Huawei·SKU TSS-HUAWEI-POWER-M-5-10-ALL-IN-ONE

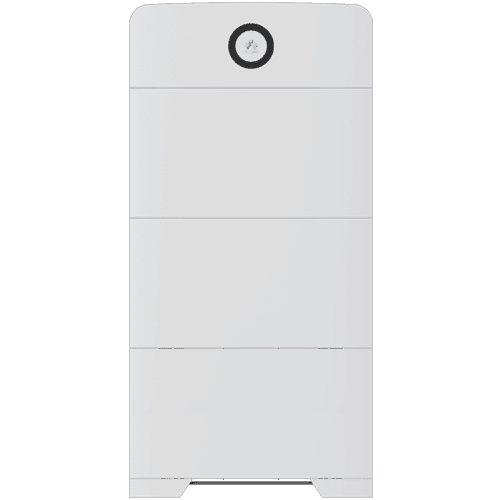

Huawei Power-M-5kW / 10kWh All-In-One System

₦6,388,300

In stock at Victoria Island, ready for pickup

The Huawei iSitePower-M-5/10 is an all-in-one Smart String Energy Storage System configured with one iSitePower-M-MAP05A1 power module (2.5 kW output/input per module) and two iSitePower-M-MAB05B1 battery modules of 5 kWh each, giving 10 kWh of usable energy and 5 kW maximum output power (6 kVA/5 kW AC output rating). It combines a solar charge input, hybrid inverter and lithium iron phosphate (LiFePO4) storage in one stackable, IP66-rated cabinet that can be wall-mounted or ground-mounted. Built for 24-hour power supply, it supports 100% depth of discharge, pack-level energy optimisation and cell-level monitoring, with a built-in extinguishing bag and 0 V port voltage for safety. Single-phase AC output is factory set to 220 V AC / 50 Hz — suitable for Nigerian homes and small businesses — with AC bypass input up to 6 kW, overload capacity up to 150%, sleep-level noise and full app/Smart PVMS control over WLAN, FE or 4G.

Power module:iSitePower-M-MAP05A1
Output/input power per module:2.5 kW
Max. output power:5 kW
Number of power modules:1
Battery module:iSitePower-M-MAB05B1
Battery module energy:5 kWh

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (228 KB).

Specifications

Power module: iSitePower-M-MAP05A1
Output/input power per module: 2.5 kW
Max. output power: 5 kW
Number of power modules: 1
Battery module: iSitePower-M-MAB05B1
Battery module energy: 5 kWh
Number of battery modules: 2
Battery usable energy: 10 kWh
Output power (AC output): 6 kVA/5 kW
Cell technology: Lithium-iron phosphate (LiFePO4)
Depth of discharge: 100% Depth of Discharge
Output voltage system: Single-phase 200/208/220/230/240 V AC. The default value is 220 V AC
Output frequency: 50/60 Hz. The default value is 50 Hz.
Maximum output current: 30 A
Power factor: 0.8
Overload capacity: 102% ≤ Load ≤ 125%: 30 s; 125% < Load ≤ 150%: 10 s; >150%/short circuit: 0.3 s
AC input voltage: 200/208/220/230/240 V AC
AC input current: Max. 30 A
AC input frequency: 50/60 Hz
Maximum bypass input power: 6 kW
AC input lightning protection: Differential mode (between live and neutral): 3 KA; 8/20 μs; Common mode (between live or neutral and PE, between live/neutral pair and PE): 5 KA; 8/20 μs
MPPT voltage range: 90-420 V DC
Maximum input capacity of the MPPT: 5.5 kWp
PV string quantity: 2 strings
Number of MPPT channels: 1 channel
Maximum input current for one string: 12.5 A
Maximum short circuit current for one string: 18 A
PV lightning protection: Common mode (between PV+/PV– pair and PE): ±10 KA; 8/20 μs
Power module dimension (W*H*D): 700 * 246 * 152 mm
Power module weight: 17 kg
