Phocos·SKU TSS-PHOCOS-FR100B-SERIES-DC

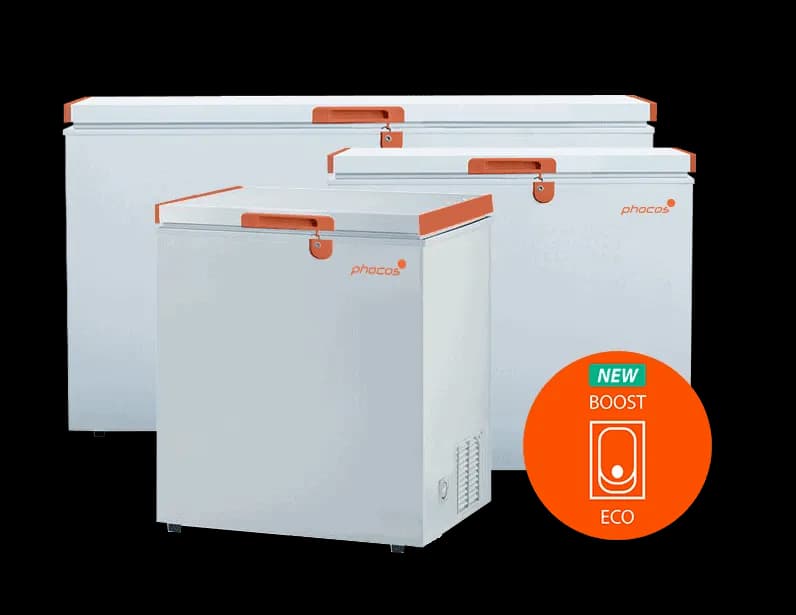

Phocos FR-100B Series DC Chest Refrigerator/Freezer

₦518,600

In stock at Victoria Island, ready for pickup

The Phocos FR100-B is a 104 L DC chest refrigerator/freezer from the FR-B Series, built for off-grid and edge-of-grid cooling. It connects directly to a 12 V or 24 V battery bank (automatic voltage recognition) with a simple 2-wire DC connection, so no inverter is required. The adjustable mechanical thermostat lets the same unit work as either a fridge or a freezer, while the new BOOST switch allows you to choose between faster cooling and the default high-efficiency ECO mode. A maintenance-free brushless DC compressor, aluminium inner lining, drain plug, hanging storage basket and lockable top-opening lid make it reliable and easy to clean. Internal protection against low voltage and reverse polarity is included, and it uses environmentally-friendly R600a refrigerant. In ECO mode it draws as little as 82 Wh/day as a fridge at 21 °C ambient. Backed by a 2 year warranty.

Type:FR100-B
System Voltage (Nominal):12 / 24 V auto recognition
Internal Operating Temperature Range:-18 to +8 °C / -0.4 to +46.4 °F
Energy Consumption at 21°C / 70°F Ambient (Default ECO Mode):82 Wh / day (Fridge: 4 °C / 38 °F); 433 Wh / day (Freezer: -18 °C / 0 °F)
Energy Consumption at 32°C / 90°F Ambient (Default ECO Mode):174 Wh / day (Fridge: 4 °C / 38 °F); 561 Wh / day (Freezer: -18 °C / 0 °F)
Content (Net Capacity):104 L / 3.6 cu. ft

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (99 KB).

Specifications

Type: FR100-B
System Voltage (Nominal): 12 / 24 V auto recognition
Internal Operating Temperature Range: -18 to +8 °C / -0.4 to +46.4 °F
Energy Consumption at 21°C / 70°F Ambient (Default ECO Mode): 82 Wh / day (Fridge: 4 °C / 38 °F); 433 Wh / day (Freezer: -18 °C / 0 °F)
Energy Consumption at 32°C / 90°F Ambient (Default ECO Mode): 174 Wh / day (Fridge: 4 °C / 38 °F); 561 Wh / day (Freezer: -18 °C / 0 °F)
Content (Net Capacity): 104 L / 3.6 cu. ft
Refrigerant: Environmentally-Friendly R600a
Ambient Temperature: +10 to +43 °C / +50 to +104 °F
Door Type: Top-Opening with integrated handle and lock
Storage Baskets: 1 Basket
Boost Switch: Standard on all models - accelerates cooling when activated
Cabinet Dimensions (WxHxD): 685 x 850 x 590 mm / 27 x 33.5 x 23.2 in
Inner Dimensions (WxHxD): 505 x 640 x 375 mm / 19.9 x 25.2 x 14.8 in (excludes compressor recess of 190 x 210 x 375 mm / 7.5 x 8.3 x 14.8 in)
Weight: 29 kg / 64 lbs
Container Loading (20'/ 40' GP /40' HC): 54 pcs. / 108 pcs. / 170 pcs.
Warranty: 2 years
