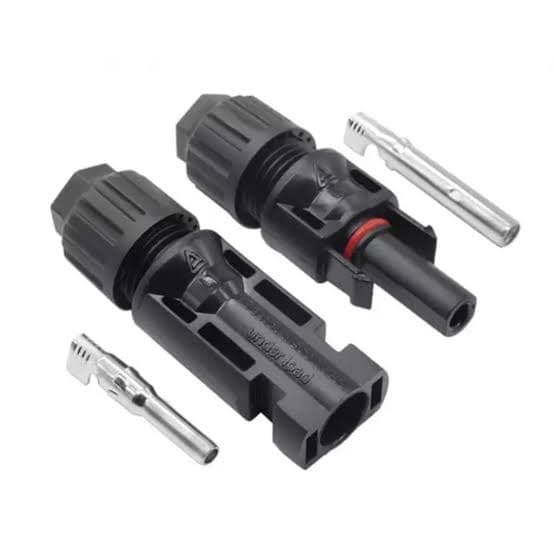

MC4 Connector Pair - Male & Female

In stock at Victoria Island, ready for pickup

The MC4C is a matched male and female MC4-type solar cable connector pair for joining PV module and array DC cables. It suits 2.5, 4 and 6mm² solar cable and is rated at 1500 V DC and 30 amps, with an IP67 sealed, UV-resistant PPO housing for outdoor use. Crimping requires the RTMC4 tool, and the connectors carry TUV DIN IEC 62852 and VDE approvals.

• Type:MC4 Solar cable connector - male and female
• Cable Range:2.5, 4, 6mm²
• Rated Voltage:1500 V DC
• Max. Current:30 amps
• Ingress Protection:IP67
• Flame Retardant Grade / UV Resistant:UL94-V0

• Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
• Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
• Installation available. Our engineers install and commission. Request a system quote.
