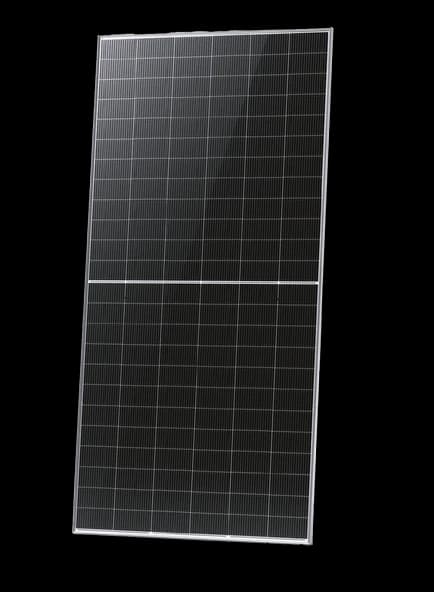

Jinko Solar Tiger Neo 620W Bifacial Solar Module
₦136,400
In stock at Victoria Island, ready for pickup
The Jinko Solar Tiger Neo JKM620N-66HL4M-BDV is a 620 W bifacial photovoltaic module built with 132 (66x2) N-type mono-crystalline TOPCon half-cells between two 2.0 mm glass sheets in an anodized aluminium frame. Dual-sided power generation lifts yield up to 685 Wp under BNPI conditions, making it suited to ground-mount, carport and commercial rooftop systems where light reaches the rear side. It carries SMBB and HOT 3.0 cell technology for low degradation, a 1500 VDC system voltage rating, IP68 junction box and a 12-year product with 30-year linear power warranty.
- Maximum Power (Pmax, STC):620 Wp
- Module Efficiency (STC):22.95 %
- Maximum Power Voltage (Vmp):40.74 V
- Maximum Power Current (Imp):15.22 A
- Open-circuit Voltage (Voc):49.08 V
- Short-circuit Current (Isc):16.08 A
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (856 KB).
Specifications
- Maximum Power (Pmax, STC)
- 620 Wp
- Module Efficiency (STC)
- 22.95 %
- Maximum Power Voltage (Vmp)
- 40.74 V
- Maximum Power Current (Imp)
- 15.22 A
- Open-circuit Voltage (Voc)
- 49.08 V
- Short-circuit Current (Isc)
- 16.08 A
- Maximum Power (BNPI, front 1000 W/m², rear 135 W/m²)
- 685 Wp
- Power Tolerance
- 0 ~ +3 %
- Cell Type
- N-type Mono-crystalline, 132 cells (66x2)
- Dimensions
- 2382 x 1134 x 30 mm
- Weight
- 32.4 kg
- Glass
- Front 2.0 mm anti-reflection coated, back 2.0 mm heat strengthened
- Junction Box / Protection Class
- IP68 rated / Class II
- Connector Type
- JK03M/MC4/Others
- Temperature Coefficient of Pmax
- -0.29 %/°C
- Bifaciality Coefficient (Pmax)
- 80±5 %
- Operating Temperature
- -40 °C ~ +70 °C
- Maximum System Voltage
- 1500 VDC (IEC)
- Maximum Series Fuse Rating
- 35 A
- Mechanical Load
- 5400 Pa front / 2400 Pa rear max static test load
- Warranty
- 12-year product warranty, 30-year linear power warranty (87.4 % at year 30)
- Certifications
- IEC61215:2021 / IEC61730:2023, IEC61701 / IEC62716 / IEC60068 / IEC62804, TUV, CE
