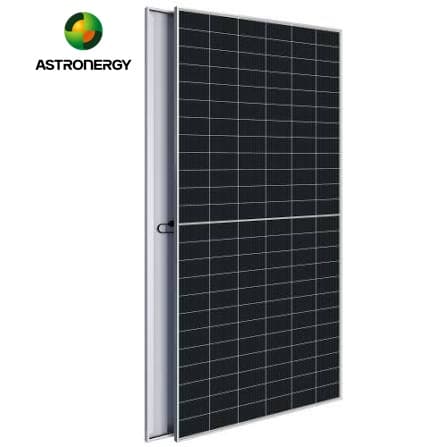

Astronergy CHINT 575W Monofacial Solar Module
₦129,400
In stock at Victoria Island, ready for pickup
The Astronergy ASTRO N5 CHSM72N-HC is a 575 W monofacial solar module built with 144 half-cut n-type TOPCon 4.0 mono-crystalline cells and an SMBB front-side design. It is intended for residential, commercial and utility-scale grid-tied or hybrid PV arrays using 1500 V strings. Strengths include 22.3% module efficiency at 575 W, a low -0.29%/°C power temperature coefficient suited to hot climates, IP68 junction box, 5400 Pa front load rating, and a 12-year product plus 30-year linear power warranty.
- Rated output (Pmpp):575 Wp
- Power range of series:570~595 W
- Power sorting tolerance:0~+3%
- Module efficiency:22.3% (max. 23.0% in series)
- Rated voltage (Vmpp):42.85 V
- Rated current (Impp):13.42 A
- Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
- Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
- Installation available. Our engineers install and commission. Request a system quote.
- Datasheet. Download the manufacturer PDF (2762 KB).
Specifications
- Rated output (Pmpp)
- 575 Wp
- Power range of series
- 570~595 W
- Power sorting tolerance
- 0~+3%
- Module efficiency
- 22.3% (max. 23.0% in series)
- Rated voltage (Vmpp)
- 42.85 V
- Rated current (Impp)
- 13.42 A
- Open circuit voltage (Voc)
- 51.64 V
- Short circuit current (Isc)
- 14.07 A
- Cell type
- n-type mono-crystalline TOPCon 4.0, 144 cells (6*24)
- Dimensions (L x W x H)
- 2278 x 1134 x 30 mm
- Module weight
- 26.6 kg
- Front glass
- 3.2 mm
- Frame
- Aluminum, silver anodized
- Max. system voltage (IEC/UL)
- 1500 VDC
- Max. series fuse rating
- 25 A
- Junction box IP rating / diodes
- IP 68 / 3 diodes
- Connector type (IEC/UL)
- HCB40 (Standard) / MC4-EVO2A (Optional)
- Cable length / diameter
- Portrait: (+)350 mm, (-)250 mm; 4 mm² / 12 AWG
- Max. mechanical test load
- 5400 Pa (front) / 2400 Pa (back)
- Temperature coefficients
- Pmpp -0.29%/°C, Voc -0.25%/°C, Isc +0.043%/°C
- First year / year 2-30 power degradation
- ≤ 1.0% / ≤ 0.4% per year (87.40% at year 30)
- Warranty
- 12-year product warranty, 30-year linear power warranty
- Certifications
- IEC 61215, IEC 61730, CE; ISO 9001:2015, ISO 14001:2015, ISO 45001
- Packing
- 36 pcs/box; 720 pcs per 40' HQ container; 1009 kg per packing unit
