Huawei·SKU TSS-HUAWEI-LUNA2000-241

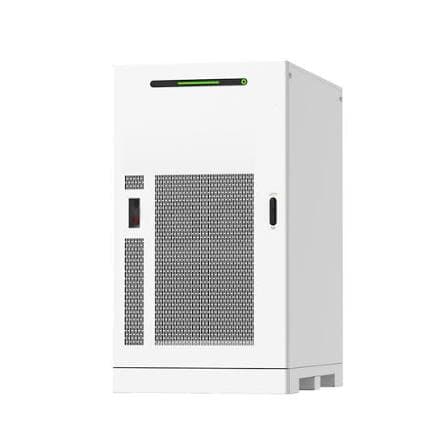

Huawei LUNA2000-241-2S1 ESS (241 kWh)

₦85,000,000

In stock at Victoria Island, ready for pickup

The Huawei LUNA2000-241-2S1 is an all-in-one commercial and industrial energy storage system with 241.0 kWh of LFP battery capacity and an integrated PCS2000-108K-MB1 power conversion system rated at 108 kW. It is designed for grid-forming and on/off-grid C&I applications such as peak shaving, load shifting and backup supply. The cabinet uses hybrid cooling, active cell balancing and multi-level fire suppression with an IP55 enclosure for outdoor installation.

Rated capacity:241.0 kWh
Rated output power (PCS):108 kW
PCS model type:PCS2000-108K-MB1
AC voltage & frequency:380 / 400 / 415 V (3P4W), 50 / 60 Hz
Rated AC current:155.9 A
Maximum cycle efficiency:91.3%

Order this on WhatsApp instead

Pickup at Victoria Island. Collect from 273A Kofo Abayomi Street once your transfer is confirmed.
Pay by bank transfer. Invoice and account details sent to your WhatsApp after you order.
Installation available. Our engineers install and commission. Request a system quote.
Datasheet. Download the manufacturer PDF (220 KB).

Specifications

Rated capacity: 241.0 kWh
Rated output power (PCS): 108 kW
PCS model type: PCS2000-108K-MB1
AC voltage & frequency: 380 / 400 / 415 V (3P4W), 50 / 60 Hz
Rated AC current: 155.9 A
Maximum cycle efficiency: 91.3%
Depth of charge and discharge: 0~100%
Cell material: LFP
Rated battery capacity: 314 Ah
System battery configuration: 240S1P (4 battery packs)
Operating voltage range (DC): 648~852 V
Rated DC current: 140 A
Dimensions (W x D x H): 1150 mm × 1800 mm × 2100 mm
Weight: < 2.8 T
Operating temperature range: -30 °C ~ 55 °C (>50 °C derating)
Maximum operating altitude: 4,000 m
Cooling: Hybrid cooling
Protection degree: IP55
Noise (rated operating condition): ≤65 dB(A)
Communication: Ethernet / Optical fiber, Modbus TCP
Standby power consumption: ≤150 W
Auxiliary power supply: 176~300 Vac, single phase, ≤5 kW
Certification standards: UL9540A; UN38.3; IEC 62477-1; IEC 62040-1; IEC 61000-6-1/2/3/4; IEC 62619; IEC 60529; VDE-AR-E 2510-2/50; IEC 62933-5-1/2; IEC 61727; EN 50549; GB/T 34120
